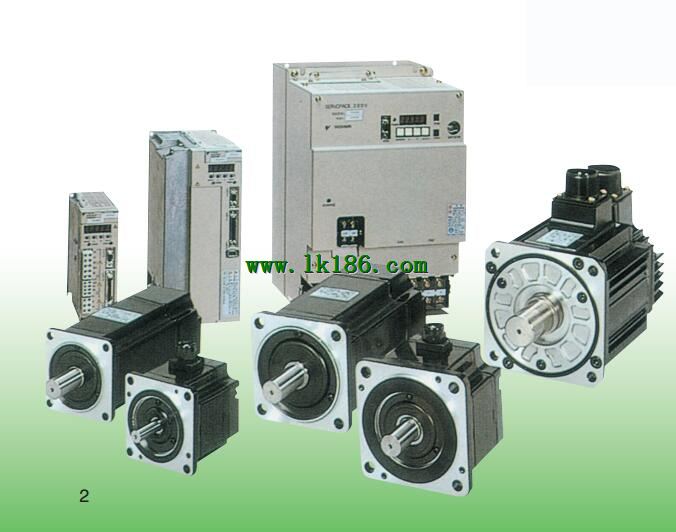

Servo motor type SGMPH (speed: 3000r/min).
Power: 0.4kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft with key.
Optional parts: with DC24V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.
Direct drive type servo motor SGMCV type.
Rated torque: M \/ 15N.
Servo motor diameter: diameter of 135mm.
Serial encoder: 22 bit (multi ring absolute encoder).
Design sequence: A.
Flange: reverse load side (lead).
Optional parts: high mechanical precision (axis offset, offset 0.01mm).
Under the condition of no speed reducer, the load is directly driven YASKAWA SGMPH-04AAA4C.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 12 ~ 75N \/ m, maximum speed: 500 ~ 600r\/min)
SGMPH-04AAA4C
By using 22 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.
Use example:
Semiconductor manufacturing apparatus YASKAWA SGMPH-04AAA4C.
Liquid crystal circuit board manufacturing device.
Various inspection and test equipment.
Electronic component packaging machine.
C information processor.
C inspection equipment.
A variety of automated machinery.
ManipulatorServo motor SGMGH type.
Rated speed: 1500r\/min.
Power: 1.8kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: taper 1\/10, with parallel key YASKAWA SGMPH-04AAA4C.
Optional parts: no brake oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain YASKAWA Servo motor.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1\/2 YASKAWA Servo motor.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSigma -V series servo motor SGMSV.
Rated output: 2.5kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard) YASKAWA Servo motor.
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with hold brake (DC24V).
Super power rate.
Variety is complete (1.0kW ~ 7.0kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67 (7.0kw for IP22).
Use example:
Placement machine.
Punch printed circuit board.
Machine tool feeding device.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resiistance grade: F SGMPH-04AAA4C.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) YASKAWA SGMPH-04AAA4C.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
