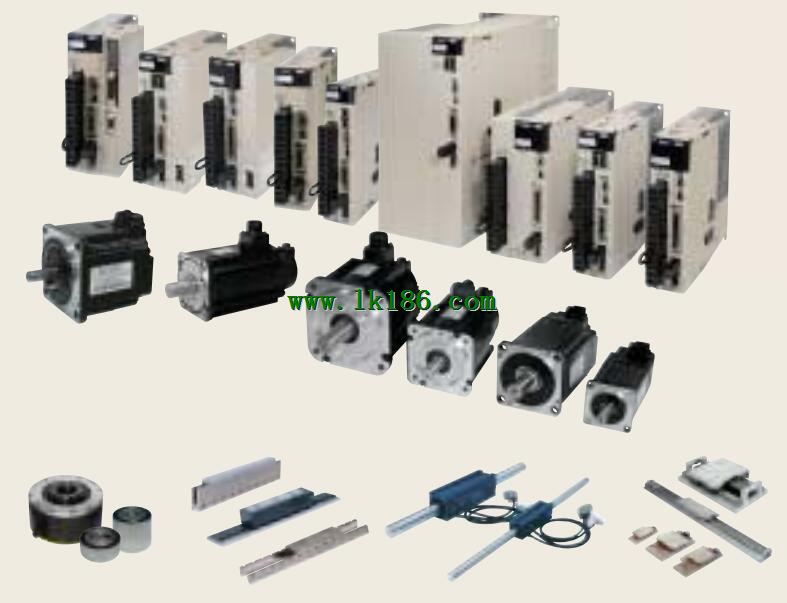

SGMMV-B9E2A21 YASKAWA SGMMV-B9E2A21 Serial encoder: 20 bit absolute value type
Brand: Yaskawa
Name: Small capacity servo motor
Model: SGMMV-B9E2A21
SGMMV type of small capacity servo motor.
Rated output: 3.3W.
Voltage: DC24V/DC48V.
Serial encoder: 17 bit absolute value type.
Design sequence: standard.
Shaft end: straight shaft, with flat seat (optional parts).
Optional parts: do not buy pieces.
Ultra small, ultra small capacity
Flange size 15mm:3.3 ~ 11W.
Flange size 25mm:10 ~ 30W.
Is equipped with a high resolution absolute value serial encoder (17 bit).
Can also be used as an incremental.
Max speed up to 6000r/min.
Type is complete (there are 2 kinds of flange size, DC/AC power supply voltage, with hold brake).











Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 0.1kw.
Power supply voltage: single phase AC100V.
Design sequence: B type.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Matching (hardware): paint.
Realize real time communication
With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control YASKAWA SGMMV-B9E2A21 SGMMV-B9E2A21
Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings
A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command YASKAWA SGMMV-B9E2A21.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly YASKAWA SGMMV-B9E2A21. Servo motor type SGMPH (speed: 3000r\/min).
Power: 1.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft with screw.
Optional parts: with DC90V brake YASKAWA Small capacity servo motor.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you YASKAWA Small capacity servo motor.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of YASKAWA Small capacity servo motor.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedSigma -V series servo motor SGMGV.
Rated output: 15kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal, with the brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resiistance grade: F SGMMV-B9E2A21.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) YASKAWA SGMMV-B9E2A21.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
