Condensed in the control cabinet for all power monitoring function.
Intelligent electric power monitor conforming to the international standard.
The design, installation, wiring, assembly and other issues can be resolved by the 1.
Small and optional measurement of multiple loops. Applicable circuits: Single-phase, 2-wire: 100 to 480 VAC;
Single-phase, 3-wire: 100/200 VAC; Three-phase, 3-wire: 100 to 480 VAC;
Three-phase, 4-wire: 85 to 277 VAC OMRON ZN-CTX21-A ZN-CTX21-A
Power supply voltage (shared): 100 to 240 VAC.
Dimensions: 96 × 48 × 93 (H × W × D).
Communications: RS-485.
Protocol: CompoWay/F, 31 nodes; Modbus, 99 nodes,
(Both are supported by the same model.)

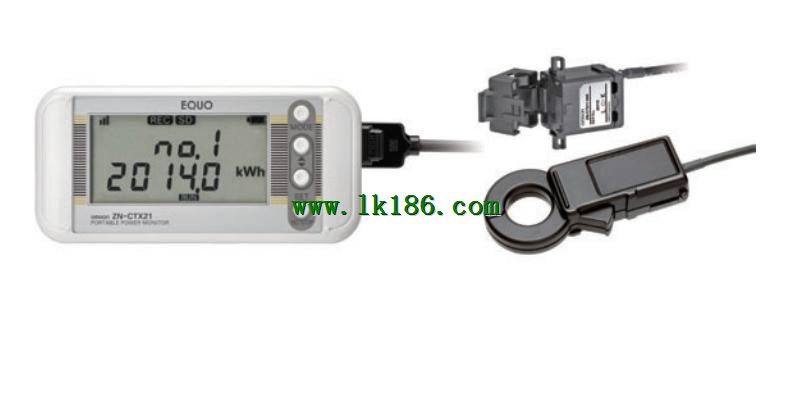

High-performance Power Monitor Suitable for On-panel Mounting and Display OMRON ZN-CTX21-A.
Assists Energy-saving Analysis.
Energy classification for wasted standby and stopped power.
(Classification based on external inputs is also supported.)
Power and current can be measured simultaneously.
Measurement of flow rates with a pulse conversion function.
Simple temperature measurements with Temperature Sensor included in the Unit.
High-precision Measurements OMRON ZN-CTX21-A.
Measurement of generated power (regenerative power),
leading reactive power, lagging reactive power, and consumed power.
Power measurements on the primary side of inverters,
which are widely used to save energy.
Automatic range switching for accurate measurement of standby and stopped power OMRON New-generation environmental sensor.
Energy-saving Functions.
Conversion to monetary cost. (Also used for classified standby and stopped power OMRON New-generation environmental sensor. )
Alarm outputs can be selected for active power, reactive power,
regenerative power, current, voltage, or power factor.
The Power Monitor can log measurement data and supports Modbus communications.
Installation and Settings.
Direct measurement of three-phase, four-wire, 400-V line voltage OMRON New-generation environmental sensor.
Simple measurements without voltage wiring.
Incorrect voltage wiring detection. Easy temperature and humidity control with an SD Card. Type: related equipment (sold separately); split type current transformer (CT).
Rated primary side current: 500A.
Rated two secondary current: 1A.
Simple monitoring of the use of electricity to support energy saving countermeasures.
On behalf of the use of the mechanical equipment, the measuremeent of the initial voltage, current,
Cumulative quantity, invalid power, power factor, frequency ZN-CTX21-A.
To achieve a simple record with a memory card. (with memory card function model)
The measurement data can be stored in the main body, and the centralized monitoring and management can be carried out in the communication network OMRON ZN-CTX21-A.
Wide 45mm miniaturization, simple set to the DIN guide.
