Product Name:Wall mounted receptacle
Part No.:1428.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position:2h.
Hertz>300-500 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.

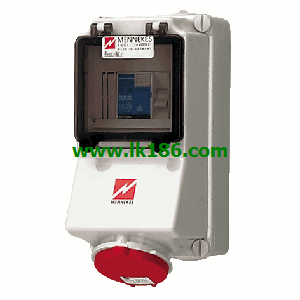

one cable entry at top, two blind cable entries (can be cut out) at bottom MENNEKES 7313.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch 7313Product Name:Panel mounted receptacle
Part No.:1395.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44 MENNEKES 7313.
screw terminals.
straight.Product Name:Wall mounted receptacle
Part No.:7134.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67.
screw terminals.
fused with fuse socket D01 or D02 MENNEKES 7313. Product Name:Wall mounted receptacle
Part No.:1136A.
Ampere:63A.
Poles:3p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with SoftCONTACT.
suitable for through wiring MENNEKES Wall mounted receptacle.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at the bottom.
enclosure base can be turned 180° MENNEKES Wall mounted receptacle.
with 6 fixing points to accommodate special. terminals.
products with pilot contacts: part no. + index P.Product Name:Panel mounted receptacle RAPIDO® with TwinCONTACT
Part No.:1134.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz MENNEKES Wall mounted receptacle.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
for wall apertures 70 mm diameter.
central fixing.Product Name:Wall mounted receptacle
Part No.:132A.
Ampere:63A.
Poles:4p.
Voltage:400VV 7313.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals.
with SoftCONTACT.
internal fixing.
one cable entry at top and two blind cable entries. (can be cut outt) at bottom MENNEKES 7313.
enclosure base can be turned 180°.
with 6 fixing points to accommodate special terminals.
products with pilot contact: part no. + index P.
