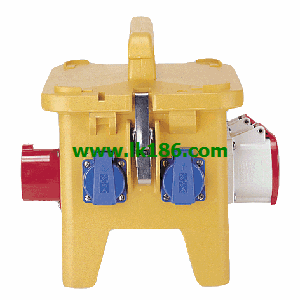

Product Name:DELTA-BOX receptacle combination
Part No.:83699.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Protection type:IP67 MENNEKES 70414.
high resistance to chemicals made of AMELAN 70414
highly heat resistant contact carriers and nickel plates contacts.
with cable grip and installed hanging hook.Product Name:AMAXX® receptacle combination
Part No.:910223.
Fitted with:1 CEE 16A, 5p, 400V
1 swiss standard type 25, 16A, 5p, 400V
1 swiss standard type 23, 16A, 3p, 230V MENNEKES 70414.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:130 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST MENNEKES 70414. Product Name:AMAXX® receptacle combination
Part No MENNEKES EverGUM receptacle combination. :940025.
Fitted with:1 CEE 63A, 5p, 400V
1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg MENNEKES EverGUM receptacle combination. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB´s 16A, 3p, C
2 MCB´s 16A, 1p+N, C.
Pre-fuse max.:63A.
InA:63A.
RDF:0.5.
Connection/feeder cable:for 2 cable up to 5 x 25mm² MENNEKES EverGUM receptacle combination.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation 70414.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 70414.
fusing behind a transparent cover.
