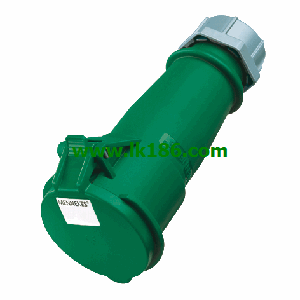

Product Name:Connector AM-TOP®
Part No.:553.
Ampere:32A.
Poles:3p
Voltage:400V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP67 MENNEKES 517.
screw terminals 517
single part body.
cable gland and sealing.
strain relief and protection against kinking.Product Name:Panel mounted inlet
Part No.:837.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:Screw terminals MENNEKES 517.
Contact:standard.
Protection type IP44.
screw terminals.
nickel-plated contacts.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.Product Name:Wall mounted inlet
Part No.:357.
Ampere:63A.
Poles:4p.
Voltage:400V MENNEKES 517.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP67 MENNEKES Connector AM-TOP.
screw terminals.
for a suitable watertight protective cover see part no. 40434.Product Name:Connector AM-TOP®
Part No MENNEKES Connector AM-TOP. :21521.
Ampere:16A.
Poles:3p
Voltage:230V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP44 MENNEKES Connector AM-TOP.
screw terminals.
single part body.
with highly heat resistant contact carrier.
nickel plated contacts.
cable gland and sealing.
strain relief and protection against kinking.Product Name:Connector StarTOP® with SafeCONTACT
Part No.:996.
Ampere:16A.
Poles:4p
Voltage:>50-500V.
Earth position:10h.
Hertz 100-300Hz.
Connection technology:Screwless - SafeCONTACT 517.
Contact:standard.
Protection type IP44.
screwless, with insulationn displacing technique MENNEKES 517.
SafeCONTACT.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.
