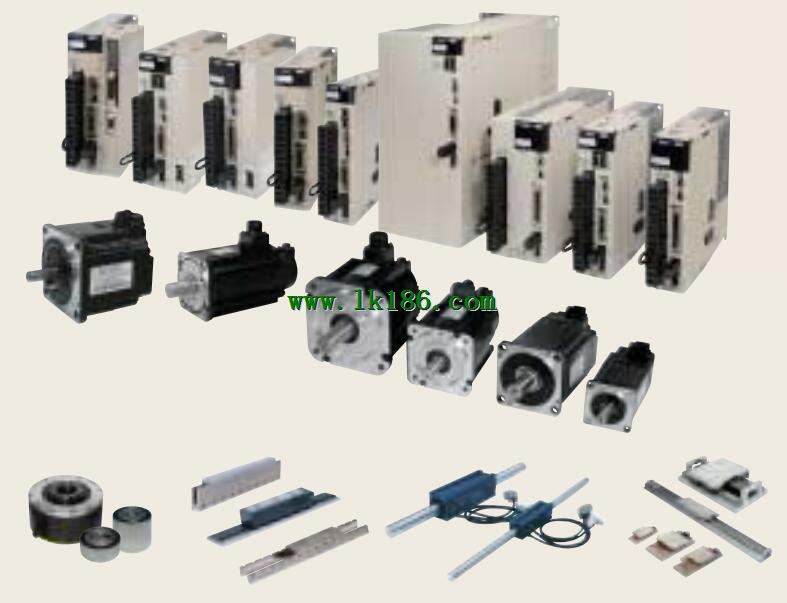

Yaskawa SGMCS-80DDC41 Direct drive servo motor


DC power input servo unit type SGDV.
Maximum applicable motor capacity: 11W.
Power supply voltage: DC48V.
Interface: MECHATROLINK- II communication command type (rotary servo motor).
Design sequence: B.
Realize real time communication.
The maximum transmission speed is 10Mbps, the communication cycle of 250 tested s ~ 4ms (depending on the device), Can carry up to 30 stations of the high speed control SGMCS-80DDC41. Through the high speed of communication, can send and receive all kinds of control information in real time SGMCS-80DDC41.
Energy saving and high efficiency
A maximum of 30 stations can be connected to the communication lines, can significantly reduce the wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command SGMCS-80DDC41 Yaskawa SGMCS-80DDC41.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control Yaskawa SGMCS-80DDC41.
Because the control mode can be switched on line, the complicated mechanical efficiency can be realized more effectively and smoothly.Sigma -v series servo unit SGDV.
Maximum applicable motor capacity: 15kw.
Power supply voltage: three phase AC200V Yaskawa SGMCS-80DDC41.
Design sequence: B type.
Interface: MECHATROLINK- III communication command type (linear servo motor).
Matching (hardware): base mounting type (standard).
Realize real time communication
With the maximum transmission speed of 100Mbps and the set of communication cycle 125S ~ 4ms, to achieve a more than 62 stations of the high speed control.
Through the high speed of communication, can send and receive all kinds of control information in real time.
Contribute to cost savings
A maximum of 62 stations can be connected to the communication line, can significantly reduce wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command.
High precision motion control is realized.
IIn addition to torque, position and speed control, but also to achieve high precision synchronization phase control SGMCS-80DDC41.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.
